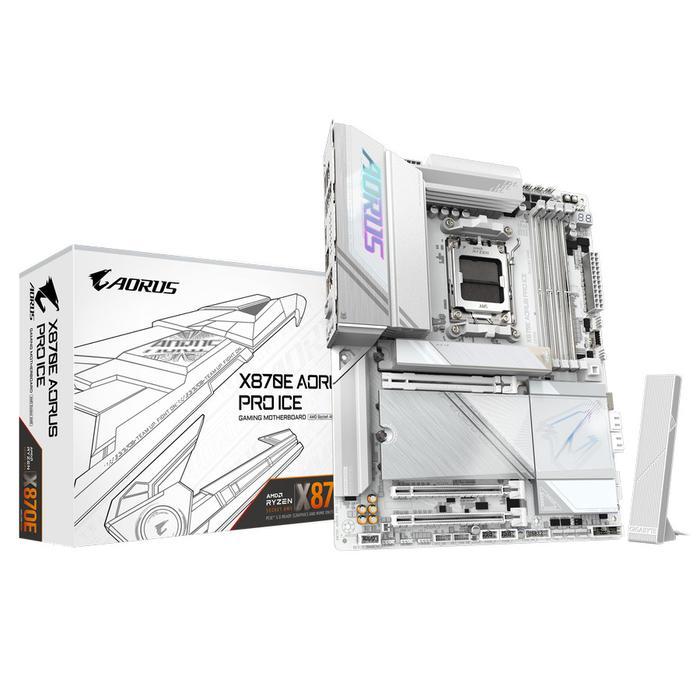

Motherboard kelas atas dengan desain VRM twin digital dan sistem pendingin canggih. Dukungan PCIe 5.0 x16, M.2 PCIe 5.0 x4, dan USB4® Type-C® 40Gbps memastikan performa maksimal. Kompatibel dengan prosesor AMD Ryzen™ seri 9000, 8000, dan 7000. Fitur audio DSD, RGB, dan kontrol fan cerdas menambah kenyamanan penggunaan. Ideal untuk gaming dan workstation berperforma tinggi.
Spesifikasi
Harga
Rp7.349.000
32 produk
Rp7.547.000
4 produk
Spesifikasi
Informasi dasar
Merek
GIGABYTE
Model
X870E AORUS PRO ICE
Tipe soket
AM5
Prosesor yang didukung
AMD Ryzen™ 9000 Series Processors, AMD Ryzen™ 8000 Series Processors, AMD Ryzen™ 7000 Series Processors
Cipset
AMD X870E
Faktor bentuk
ATX
Memori
Kapasitas memori maksimal
256
Unit kapasitas memori maksimal
GB
Saluran memori
Dual Channel
Slot memori
4
Kecepatan memori
8200
Unit kecepatan memori
MT/s
Tipe memori
DDR5
Dukungan xmp
Mendukung AMD EXPO dan XMP
Slot ekspansi
Slot m2
[{'quantity': 1, 'interface': 'PCIe 5.0 x4', 'max_speed': 'PCIe 5.0 x4 (Ryzen 9000/7000), PCIe 4.0 x4 (Ryzen 8000)'}, {'quantity': 2, 'interface': 'PCIe 5.0 x4', 'max_speed': 'PCIe 5.0 x4 (Ryzen 9000/7000), disabled (Ryzen 8000)'}, {'quantity': 1, 'interface': 'PCIe 4.0 x4', 'max_speed': 'PCIe 4.0 x4'}]
Slot pcie
[{'type': 'PCIe 5.0 x16', 'quantity': 1, 'speed': 'x16 mode (Ryzen 9000/7000), x8 mode (Ryzen 8000-Phoenix 1), x4 mode (Ryzen 8000-Phoenix 2)'}, {'type': 'PCIe 4.0 x4', 'quantity': 1, 'speed': 'x4 mode'}, {'type': 'PCIe 3.0 x4', 'quantity': 1, 'speed': 'x4 mode'}]
Penyimpanan
Port sata
4
Kecepatan sata
6Gb/s
Fitur
Fitur bios
Multi-Theme BIOS, AIO Fan Control, Q-Flash Auto Scan
Fitur debug
Q-Flash Plus, Power monitoring via HWinfo
Header rgb
4
Dukungan rgb
Ya
Konektivitas
Jaringan
Ethernet
Realtek® 2.5GbE
Wifi
Wi-Fi 7 (802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz)
Bluetooth
Bluetooth 5.3
Port usb
[{'type': 'USB4® Type-C®', 'quantity': 2, 'speed': '40Gbps'}, {'type': 'USB 3.2 Gen 2x2 Type-C®', 'quantity': 1, 'speed': '20Gbps'}, {'type': 'USB 3.2 Gen 2 Type-A', 'quantity': 3, 'speed': '10Gbps'}, {'type': 'USB 3.2 Gen 1', 'quantity': 8, 'speed': '5Gbps'}, {'type': 'USB 2.0/1.1', 'quantity': 6, 'speed': '480Mbps'}]
Output video
Hdmi
1
Displayport
2
Spesifikasi fisik
Panjang
30.5
Unit panjang
cm
Lebar
24.4
Unit lebar
cm
Pendingin
Header kipas
5
Heatsink
VRM Thermal Armor Advanced, M.2 Thermal Guard
Header pompa
3
Audio
Saluran
2/4/5.1/7.1-channel
Kodek
Realtek® ALC1220
Fitur
DSD audio support, S/PDIF Out
Sistem daya
Konektor daya
[{'type': '24-pin ATX', 'quantity': 1}, {'type': '8-pin 12V', 'quantity': 2}]
Fase daya
16+2+2
Solusi vrm
Digital twin VRM solution
