Dukung performa gaming maksimal dengan chipset Intel® Z890 dan socket LGA1851. Dilengkapi DDR5 hingga 192GB, PCIe 5.0 x16, dan 7 slot M.2 untuk penyimpanan super cepat. Fitur WiFi 7, Thunderbolt™ 4, dan audio SupremeFX ALC4080 untuk pengalaman multimedia yang memukau. Desain cooling komprehensif dengan heatsink VRM dan M.2 Combo-Sink menjaga suhu optimal. Cocok untuk gamers dan content creator yang mengutamakan kecepatan dan stabilitas.
Spesifikasi
Harga
Spesifikasi
Informasi dasar
Merek
intel
Model

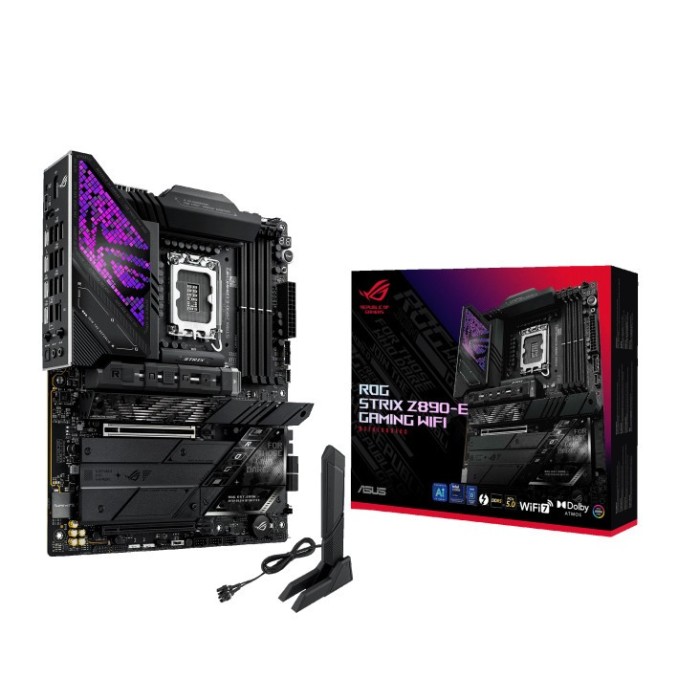

ROG STRIX Z890-E GAMING WIFI
Tanggal rilis
2024-10-24
Tipe soket
LGA1851
Prosesor yang didukung
Intel® Core™ Ultra Processors (Series 2)
Cipset
Intel® Z890
Faktor bentuk
ATX
Memori
Kapasitas memori maksimal
192
Unit kapasitas memori maksimal
GB
Saluran memori
Dual Channel
Slot memori
4
Kecepatan memori
8800
Unit kecepatan memori
MT/s
Tipe memori
DDR5
Dukungan xmp
Intel® Extreme Memory Profile (XMP)
Slot ekspansi
Slot m2
7 PCIe 5.0 x4, PCIe 4.0 x4, SATA PCIe 5.0 x4 (16 GB/s), PCIe 4.0 x4 (8 GB/s)
Slot pcie
PCIe 5.0 x16 1 x16 or x8/x4/x4 modes / PCIe 4.0 x16 1 x4 mode
Dukungan garansi
Periode garansi
3
Unit periode garansi
tahun
Tipe garansi
Standar
Penyimpanan
Port sata
4
Kecepatan sata
6Gb/s
Fitur
Fitur bios
AI Overclocking、AI Cooling II、AI Networking II、UEFI BIOS
Fitur debug
Q-Code、Q-LED、Clear CMOS Button、BIOS FlashBack™ Button
Header rgb
3
Dukungan rgb
Ya
Konektivitas
Jaringan
Ethernet
Realtek 5Gb Ethernet
Wifi
WiFi 7 (802.11be)
Bluetooth
v5.4
Port usb
Thunderbolt™ 4 (USB Type-C®) 2 40Gbps / USB 10Gbps (Type-A) 7 10Gbps / USB 10Gbps (Type-C®) 1 10Gbps / USB 10Gbps (Type-C® with Fast-charge) 1 10Gbps / USB 5Gbps (Type-A) 3 5Gbps
Output video
Hdmi
1
Displayport
1
Spesifikasi fisik
Panjang
30.5
Unit panjang
cm
Lebar
24.4
Unit lebar
cm
Pendingin
Header kipas
5
Heatsink
VRM Heatsink Array、M.2 Combo-Sink、4 x M.2 Heatsinks、Chipset Heatsink
Header pompa
1
Sensor termal
1
Audio
Saluran
7.1 Surround Sound
Kodek
SupremeFX ALC4080
Fitur
120 dB SNR stereo playback、110 dB SNR recording、Dolby Atmos® support、Gold-plated audio jacks、Optical S/PDIF out port
Sistem daya
Konektor daya
24-pin Main Power 1 / 8-pin +12V CPU Power 2
Fase daya
18+1+2+2
Solusi vrm
110A (VCCCORE), 90A (VCCGT, VCCSA), 80A (VNNAON)
