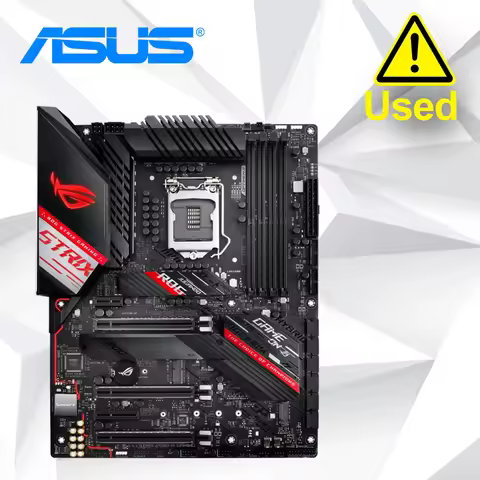

Rasakan performa maksimal untuk gaming dan kreasi konten dengan motherboard Intel ROG Strix Z490-H. Didukung chipset Intel Z490 dan soket LGA 1200, papan induk ini kompatibel dengan prosesor Intel generasi ke-10. Dilengkapi sistem daya 12+2 DrMOS yang stabil untuk menangani beban kerja berat. Dukungan memori DDR4 hingga 128GB dengan kecepatan 4600MHz (OC) memastikan multitasking lancar. Konektivitas canggih dengan Intel I225-V 2.5Gb Ethernet dan opsi WiFi M.2 (Key E) untuk jaringan cepat. Tiga slot PCIe 3.0 x16 dan dua slot M.2 dengan heatsink memberikan fleksibilitas ekspansi untuk kartu grafis dan SSD NVMe. Audio SupremeFX S1220A dengan kapasitor audio Jepang menghadirkan suara jernih dan imersif. Fitur BIOS FlashBack dan Q-LED memudahkan troubleshooting dan update BIOS. Desain ATX dengan heatsink VRM berbentuk U dan pencahayaan RGB siap mempercantik build PC Anda.
Spesifikasi
Harga
Rp4.415.000
6 produk
Spesifikasi
Informasi dasar
Merek
intel
Model
ROG Strix Z490-H
Faktor bentuk
ATX
Cipset
Intel Z490
Tipe soket
LGA 1200
Prosesor yang didukung
10th Gen Intel Core, Pentium Gold, Celeron
Memori
Kapasitas memori maksimal
128
Unit kapasitas memori maksimal
GB
Saluran memori
Dual Channel
Slot memori
4
Kecepatan memori
4600
Unit kecepatan memori
MHz
Tipe memori
DDR4
Slot ekspansi
Slot m2
[{"quantity": 1, "interface": "M.2 Socket 3 (M key)", "max_speed": "PCIe 3.0 x4 & SATA"}, {"quantity": 1, "interface": "M.2 Socket 3 (M key)", "max_speed": "PCIe 3.0 x4"}]
Slot pcie
[{"type": "PCIe 3.0 x16", "quantity": 3, "speed": "x16 or x8+x4+x4"}, {"type": "PCIe 3.0 x4", "quantity": 1, "speed": "x2"}, {"type": "PCIe 3.0 x1", "quantity": 1, "speed": "x1"}]
Penyimpanan
Port sata
6
Kecepatan sata
6 Gb/s
Konektivitas
Jaringan
Wifi
M.2 slot only (Key E) - module sold separately
Bluetooth
Bluetooth 5.1 (with module)
Ethernet
Intel I225-V 2.5Gb Ethernet
Port usb
[{"type": "USB 3.2 Gen 2 Type-A", "quantity": 1, "speed": "10 Gbps"}, {"type": "USB 3.2 Gen 2 Type-C", "quantity": 1, "speed": "10 Gbps"}, {"type": "USB 3.2 Gen 1 Type-A", "quantity": 4, "speed": "5 Gbps"}, {"type": "USB 2.0", "quantity": 1, "speed": "480 Mbps"}]
Output video
Hdmi
1
Displayport
1
Sistem daya
Konektor daya
[{"type": "24-pin EATX", "quantity": 1}, {"type": "8-pin ATX 12V", "quantity": 1}, {"type": "4-pin ATX 12V", "quantity": 1}]
Fase daya
12+2
Solusi vrm
12+2 DrMOS
Audio
Saluran
7.1
Kodek
SupremeFX S1220A
Fitur
LED-lit Audio Shielding, Premium Japanese audio capacitors, Audio Cover, Optical S/PDIF out, Dual OP Amplifiers, Impedance sense for front and rear headphone outputs, Gold-plated jacks
Pendingin
Header kipas
4
Heatsink
MOS heatsink with U-shaped heatpipe, Extended VRM heatsink, Dual M.2 heatsinks
Header pompa
1
Sensor termal
1
Spesifikasi fisik
Panjang
30.5
Unit panjang
cm
Lebar
24.4
Unit lebar
cm
Fitur
Fitur bios
192 (128+64) Mb Flash ROM, UEFI AMI BIOS, EZ Flash 3, AI Overclocking Guide, Secure Erase, SATA Port Renaming, Search Function, User Profile
Fitur debug
Q-LED (CPU, DRAM, VGA, Boot Device), BIOS FlashBack button
Header rgb
3
Dukungan rgb
Ya
