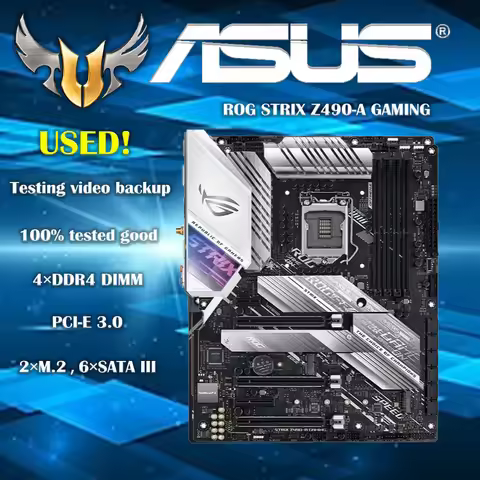

Rakit PC gaming atau workstation performa tinggi dengan motherboard ATX ROG STRIX Z490-A GAMING. Didukung chipset Intel Z490 dan soket LGA 1200, papan ini kompatibel dengan prosesor Intel generasi ke-10. Nikmati performa memori DDR4 hingga 4600MHz (OC) dengan kapasitas maksimal 128GB melalui 4 slot dual-channel.
Konektivitas jaringan diotimalkan dengan Intel I225-V 2.5Gb Ethernet untuk kecepatan transfer data tinggi, mengurangi latensi saat bermain game online atau mentransfer file besar. Sistem audio SupremeFX S1220A 8-channel dengan kapasitor audio Jepang premium dan dual OP amplifier menghadirkan suara jernih dan imersif untuk pengalaman gaming dan hiburan.
Fitur pendinginan canggih meliputi heatsink VRM berbentuk U, heatsink VRM diperpanjang, dan dual heatsink M.2 untuk menjaga suhu komponen tetap stabil. Sistem daya 12+2 fase dengan Digi+ VRM dan ProCool II memastikan pasokan daya stabil dan efisien ke prosesor, ideal untuk overclocking.
Untuk penyimpanan dan ekspansi, motherboard ini menyediakan 6 port SATA 6Gb/s, 2 slot M.2 (PCIe 3.0 x4 & SATA), dan 3 slot PCIe 3.0 x16 untuk kartu grafis atau aksesori lainnya. Port USB meliputi USB 3.2 Gen 2 Type-C dan Type-A dengan kecepatan 10 Gbps, serta 4 port USB 3.2 Gen 1. Dilengkapi fitur debug Q-LED dan BIOS FlashBack untuk kemudahan troubleshooting dan update BIOS tanpa prosesor.
Spesifikasi
Harga
Rp4.041.600
8 produk
Spesifikasi
Informasi dasar
Merek
intel
Model
ROG STRIX Z490-A GAMING
Tipe soket
LGA 1200
Prosesor yang didukung
Intel 10th Gen Core, Pentium Gold, Celeron
Cipset
Intel Z490
Faktor bentuk
ATX
Memori
Kapasitas memori maksimal
128
Unit kapasitas memori maksimal
GB
Saluran memori
Dual Channel
Slot memori
4
Kecepatan memori
4600
Unit kecepatan memori
MHz
Tipe memori
DDR4
Slot ekspansi
Slot m2
[{"quantity": 1, "interface": "M.2 Socket 3 (M key)", "max_speed": "PCIe 3.0 x4 & SATA"}, {"quantity": 1, "interface": "M.2 Socket 3 (M key)", "max_speed": "PCIe 3.0 x4"}]
Slot pcie
[{"type": "PCIe 3.0 x16", "quantity": 3, "speed": "x16 or x8+x4+x4"}, {"type": "PCIe 3.0 x4", "quantity": 1, "speed": "x2"}, {"type": "PCIe 3.0 x1", "quantity": 1, "speed": "x1"}]
Penyimpanan
Port sata
6
Kecepatan sata
6 Gb/s
Fitur
Fitur bios
192 (128+64) Mb Flash ROM, UEFI AMI BIOS, EZ Flash 3, CrashFree BIOS 3, AI Overclocking Guide
Fitur debug
Q-LED (CPU, DRAM, VGA, Boot Device), BIOS FlashBack button
Header rgb
3
Dukungan rgb
Ya
Konektivitas
Jaringan
Ethernet
Intel I225-V 2.5Gb Ethernet
Wifi
M.2 slot only (Key E) - module sold separately
Port usb
[{"type": "USB 3.2 Gen 2 Type-A", "quantity": 1, "speed": "10 Gbps"}, {"type": "USB 3.2 Gen 2 Type-C", "quantity": 1, "speed": "10 Gbps"}, {"type": "USB 3.2 Gen 1 Type-A", "quantity": 4, "speed": "5 Gbps"}, {"type": "USB 2.0", "quantity": 2, "speed": "480 Mbps"}]
Output video
Hdmi
1
Displayport
1
Spesifikasi fisik
Panjang
30.5
Unit panjang
cm
Lebar
24.4
Unit lebar
cm
Pendingin
Header kipas
4
Heatsink
MOS heatsink with U-shaped heatpipe, Extended VRM heatsink, Dual M.2 heatsinks
Header pompa
1
Sensor termal
1
Audio
Saluran
8-Channel
Kodek
SupremeFX S1220A
Fitur
Audio Shielding, Premium Japanese audio capacitors, Dual OP amplifiers, Impedance sense, Optical S/PDIF out
Sistem daya
Konektor daya
[{"type": "24-pin EATX", "quantity": 1}, {"type": "8-pin ATX 12V", "quantity": 1}, {"type": "4-pin ATX 12V", "quantity": 1}]
Fase daya
12+2
Solusi vrm
Digi+ VRM, ProCool II
